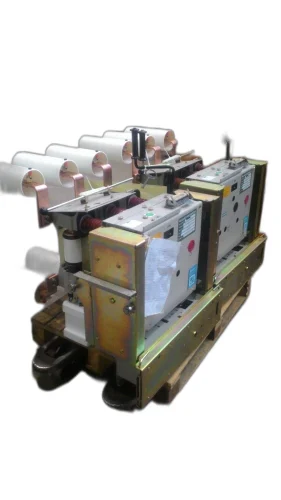

VCB RETROFIT
At Mashel Electric, we specialize in professional VCB Retrofit services designed to revitalize your aging switchgear infrastructure. As electrical networks age, older Oil Circuit Breakers (OCBs) or Vacuum Circuit Breakers (VCBs) often become obsolete, difficult to maintain, and prone to failure. Our retrofitting solutions provide a cost-effective alternative to full panel replacement, upgrading your existing system with modern vacuum technology while retaining the original enclosure and busbars.
Our certified engineering team ensures a seamless transition by precisely engineering retro-fit kits that fit into your current switchgear compartments. This approach minimizes downtime, reduces civil works, and ensures your infrastructure meets current safety standards like IEC 62271-100. We work closely with facility managers to provide customized retrofitting strategies that extend equipment life, enhance operational safety, and improve breaking capacity.
FUNCTIONALITY
Our VCB retrofit process involves the scientific replacement of the old arc-quenching medium with advanced vacuum interrupters. By utilizing the existing switchgear structure, we install a new vacuum bottle mechanism, operating mechanism (spring or magnetic), and modern control circuits. This upgrade eliminates the fire hazards associated with oil breakers and significantly reduces maintenance requirements. The retrofitted breaker offers superior switching performance, faster fault clearance times, and extended electrical life, ensuring your power distribution system operates with the reliability of brand-new equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 11kV / 22kV / 33kV |
| Rated Current | 630A / 1250A / 2000A / 2500A |
| Short Circuit Breaking Capacity | 25kA / 31.5kA / 40kA |
| Applicable Standards | IEC 62271-100, IS 13118 |
| Operating Mechanism | Motor Charged Spring Mechanism / Magnetic Actuator |
| Vacuum Interrupter Brand | Siemens, Eaton, ABB, Toshiba, Crompton Greaves |
| Retrofit Compatibility | Compatible with OCBs and old VCBs from BHEL, Siemens, ABB, GEC, Alstom, L&T |
| Control Voltage | 110V DC / 220V DC / 230V AC |
| Mechanical Life | 10,000 Operations (Typical) |
| Optional Features | Electrically charged mechanism, Trip/Close coils, Under Voltage releases, Auxiliary switches |
Benefits
- Significant Cost Savings: Retrofitting costs significantly less than replacing the entire switchgear panel, saving up to 40-50% on capital expenditure while delivering equal performance.
- Elimination of Fire Hazards: Replacing oil-based breakers with vacuum technology removes the risk of oil leaks and fire explosions, ensuring a safer operational environment.
- Reduced Maintenance: Vacuum interrupters are sealed for life and require minimal maintenance compared to oil or air blast breakers, reducing operational costs and downtime.
- Extended Asset Life: Upgrading the heart of the switchgear extends the overall lifespan of the electrical distribution system by another 15-20 years.
- Minimal Downtime: Our pre-engineered retrofit kits are designed for quick installation, drastically reducing the outage time required for upgrades.
- Environmental Responsibility: Vacuum technology is eco-friendly, eliminating the need for hazardous oil disposal and reducing the carbon footprint of the facility.
- Modern Compliance: Ensures the switchgear meets the latest international and national safety standards, facilitating easier insurance and regulatory audits.
Applications
- Power Utilities & Substations: Upgrading older grid substations to improve reliability and fault handling capacity without replacing civil infrastructure.
- Heavy Industries: Steel plants, cement factories, and chemical industries upgrading old OCBs to handle frequent switching and high fault currents safely.
- Commercial Complexes: Shopping malls and IT parks modernizing aging switchgear to ensure tenant safety and business continuity.
- Manufacturing Plants: Retrofitting production line switchgear to minimize maintenance shutdowns and prevent production losses.
- Oil & Gas Refineries: Replacing explosion-prone oil breakers with safe vacuum alternatives in hazardous environments.
- Infrastructure Projects: Airports, metros, and railways upgrading legacy electrical systems to meet modern load demands.
- Hospitals & Healthcare: Ensuring critical power infrastructure reliability by modernizing old breakers without long power cuts.
- Data Centers: Enhancing the reliability of power distribution units (PDUs) by retrofitting aging breakers with high-speed vacuum technology.
Retrofit Engineering Excellence
- Comprehensive Site Surveys: We conduct detailed dimensional surveys of existing switchgear to ensure the retrofit kit fits perfectly into the legacy enclosure.
- Customized Adaptor Kits: Fabrication of custom mounting plates and insulation barriers to interface the new VCB mechanism with the old structure.
- Busbar Integration: Expert reconnection and alignment of existing busbars to the new interrupter terminals to ensure low contact resistance.
- Mechanism Overhaul: Supply of brand-new spring operating mechanisms, eliminating the risk of mechanical fatigue found in old breaker drives.
- Control Wiring Upgrades: Modernization of secondary control wiring and integration of new protection relays for enhanced fault detection.
Quality Assurance
- Insulation Resistance Test: Verifying the integrity of the insulation provided by the new vacuum bottles and support insulators.
- Contact Resistance Measurement: Ensuring milli-volt drop and contact resistance are within limits to prevent overheating.
- High Voltage Tests: Conducting power frequency withstand tests to confirm the dielectric strength of the retrofitted assembly.
- Mechanical Operation Tests: Checking the smooth operation of the spring charge motor, closing coil, and tripping mechanisms.
- Timing Analysis: Verifying the opening, closing, and bounce times of the breaker using digital timing analyzers.
Key Features
Drop-in Replacement Design
Engineered to fit directly into existing switchgear cells without major modifications to the cubicle structure.
Oil-Free Operation
Eliminates the need for oil filtration, testing, and disposal, offering a clean and maintenance-free arc quenching medium.
High Breaking Capacity
Modern vacuum interrupters provide superior short-circuit breaking performance compared to legacy oil/air breakers.
Quick Execution
Pre-fabricated kits allow for rapid installation, typically completing a feeder upgrade within hours.
New Operating Mechanism
Each retrofit comes with a brand-new, reliable spring-charged operating mechanism, ensuring trouble-free operation.
Interchangeability
Designed to be interchangeable with original equipment dimensions, maintaining the validity of the switchgear interlocks.
Safety Shutters
Verification and repair of safety shutters to ensure operator safety during racked-out conditions.
Relay Integration
Option to integrate modern numerical relays during the retrofit for better protection and monitoring capabilities.
Low Maintenance
Vacuum bottles are maintenance-free for life, requiring only periodic cleaning and mechanism lubrication.
Dielectric Strength
High dielectric strength of vacuum ensures rapid recovery of insulation after arc interruption.
Power Frequency Withstand
Designed to withstand power frequency voltages and lightning impulse voltages as per standards.
Performance Warranty
Comprehensive warranty on the retrofitted breaker unit and installation workmanship.
Why Choose Mashel Electric
Mashel Electric is a leader in switchgear modernization, combining technical expertise with high-quality retro-fit kits to deliver superior results.
Custom Engineering
We design retrofit solutions tailored to your specific switchgear model, ensuring a perfect fit and optimal performance.
Premium Components
We use vacuum interrupters and mechanisms from globally renowned brands like Siemens, Eaton, and ABB.
Turnkey Solution
From site survey and design to installation and testing, we handle the entire retrofit process end-to-end.
Eco-Friendly Tech
Our vacuum retrofitting solutions are green, eliminating oil hazards and supporting sustainable industrial practices.
Multi-Brand Expertise
We have successfully executed retrofits for legacy switchgear from BHEL, L&T, Siemens, GEC, and more.
Proven Track Record
Years of experience in switchgear upgradation with a portfolio of successful projects across diverse industries.
Frequently Asked Questions
A VCB Retrofit is the process of replacing an old or obsolete circuit breaker (like an Oil Circuit Breaker or an old VCB) with a modern Vacuum Circuit Breaker inside the existing switchgear panel. It allows you to upgrade the technology without replacing the entire switchgear cubicle.
Yes, retrofitting is generally 40-50% more cost-effective than installing brand new switchgear. Since you retain the existing enclosure, busbars, and civil structure, you save significantly on material and construction costs.
Since we pre-fabricate the retrofit kits in our factory, the actual on-site installation is very quick. A single feeder can typically be upgraded and commissioned within a few hours, minimizing your plant downtime.
Yes, our retrofit kits are custom engineered to match the specific dimensions and mounting points of your existing breaker. This ensures that the new VCB fits perfectly into the old cell and operates smoothly with the existing shutters and interlocks.
Absolutely. We provide a comprehensive warranty on the vacuum interrupters, the operating mechanism, and our workmanship. This ensures you have peace of mind with your upgraded assets.
