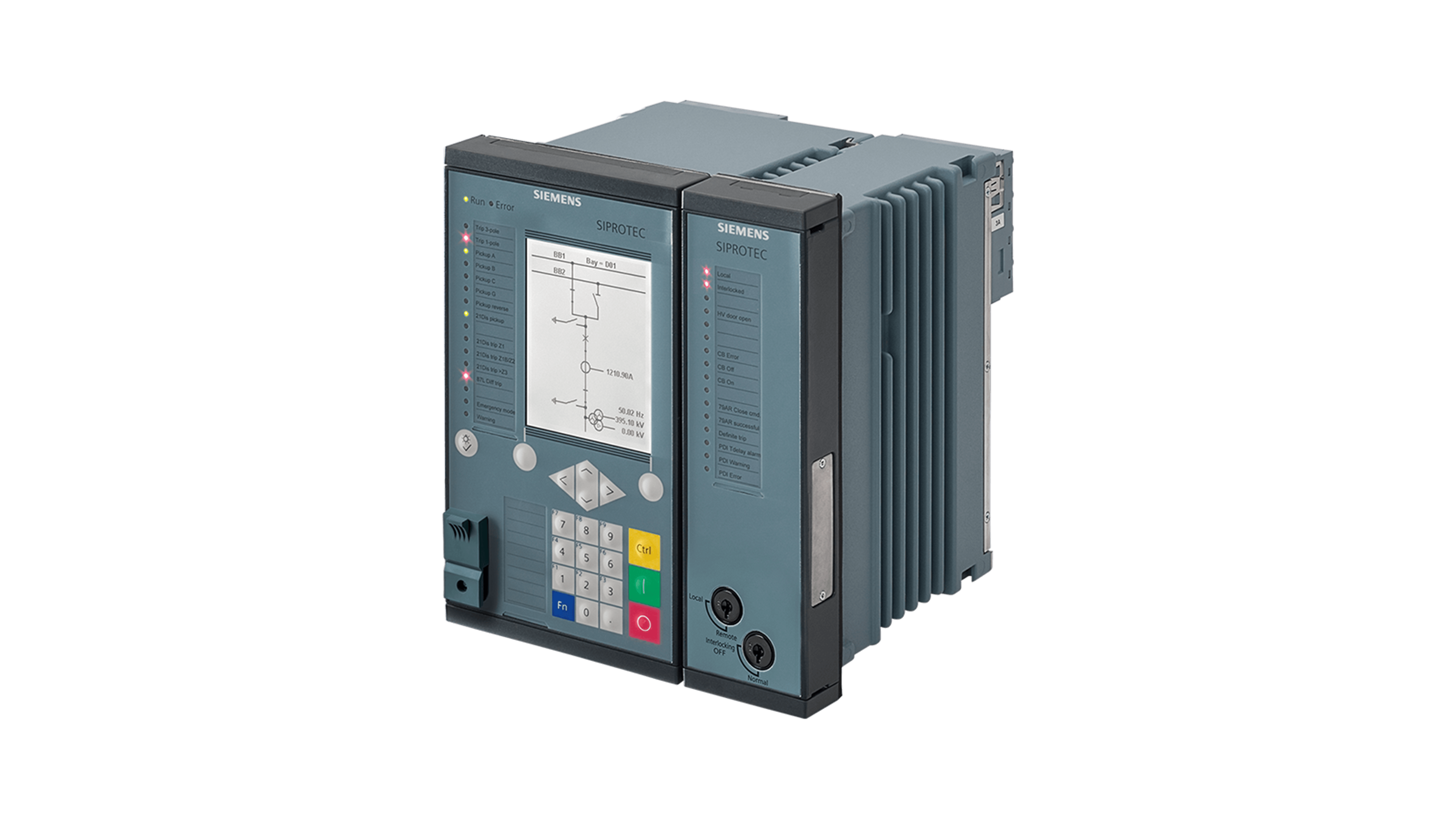

Siprotec 5 represents the pinnacle of protection and control technology for power systems. As Siemens' advanced digital protection relay platform, it offers unparalleled reliability, flexibility, and performance for electrical networks across industries. Our team of certified Siemens partners specializes in implementing Siprotec 5 solutions tailored to meet the unique needs of utility, industrial, and infrastructure clients worldwide.
Whether it's upgrading legacy protection systems, implementing complex protection schemes, or integrating with modern SCADA systems, Siprotec 5 delivers unmatched capabilities. We work closely with our clients to provide customized solutions that ensure optimal protection, monitoring, and control of critical electrical assets. Our commitment to technical excellence, timely service, and attention to detail makes us the preferred partner for all your Siprotec 5 implementation needs. Trust us to safeguard your power infrastructure with cutting-edge technology and expertise!
FUNCTIONALITY
Siprotec 5 serves as the intelligent core of modern power system protection and control. Equipped with powerful digital signal processors and advanced algorithms, these devices continuously monitor electrical parameters to detect faults, abnormalities, and system disturbances. Upon detecting a fault condition, the relay operates in milliseconds to isolate affected sections, preventing equipment damage and system collapse. With modular communication capabilities, Siprotec 5 seamlessly integrates with substation automation systems, enabling remote monitoring, control, and advanced grid management functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Device Family | Siprotec 5 series (7SJ80, 7UT85, 7SA6, 7SD6, 7VE6, etc.) |
| Power Supply | 24-250 V DC/AC (auto-ranging) |
| Binary Inputs | Up to 40 configurable inputs (depending on model) |
| Binary Outputs | Up to 32 relay outputs (depending on model) |
| Operating Time | Less than 20 ms for most protection functions |
| Communication Protocols | IEC 61850 (Edition 2), IEC 60870-5-103, Modbus, DNP3, PROFINET |
| Analog Inputs | Up to 12 current and 8 voltage inputs (depending on model) |
| Protection Functions | Overcurrent, distance, differential, voltage, frequency, and more |
| Cybersecurity | IEEE 1686, IEC 62351 compliance with advanced encryption |
| Environmental Rating | IP52 (front), IP20 (terminals), -40°C to +70°C operating range |
Benefits
- Enhanced System Reliability: Siprotec 5 provides superior fault detection and selective tripping, minimizing unnecessary outages and improving overall system stability.
- Future-Proof Technology: With IEC 61850 Edition 2 compliance and modular hardware, Siprotec 5 adapts to evolving grid requirements and communication standards.
- Reduced Operating Costs: Advanced protection algorithms and predictive maintenance capabilities extend equipment life and reduce unplanned maintenance.
- Superior Cybersecurity: Built-in security features protect critical infrastructure from digital threats, ensuring system integrity and data protection.
- Seamless Integration: Compatible with existing and new substation equipment, enabling gradual migration without complete system replacement.
- Advanced Analytics: Comprehensive fault recording and analysis tools enable root cause analysis and system optimization.
- Global Compliance: Meets international standards including IEC, IEEE, and regional requirements, ensuring compliance across markets.
Applications
- Power Transmission: Protects transmission lines and transformers in high-voltage networks, ensuring grid stability and preventing cascading failures.
- Power Generation: Safeguards generators, excitation systems, and auxiliary equipment in conventional and renewable power plants.
- Industrial Facilities: Provides comprehensive protection for motors, transformers, and distribution equipment in manufacturing plants and industrial complexes.
- Substation Automation: Forms the core of modern digital substations with IEC 61850-based communication and control capabilities.
- Railway Electrification: Ensures reliable protection for traction power supply systems in electrified rail networks.
- Renewable Energy: Optimizes protection and control for solar farms, wind parks, and battery storage systems.
- Marine Applications: Protects electrical systems in vessels and offshore platforms with specialized protection algorithms.
- Mining Operations: Delivers robust protection for harsh environments with specialized features for mining electrical systems.
Manufacturing Excellence
- German Engineering: Designed and manufactured in Siemens' state-of-the-art facilities with rigorous quality control processes.
- Modular Design: Flexible hardware architecture allows for easy configuration and future expansion as system requirements evolve.
- Environmental Testing: Subjected to extensive environmental stress testing to ensure reliable operation in harsh conditions.
- Component Quality: Utilizes industrial-grade components with extended temperature ratings and high MTBF values.
- Customization Options: Offers application-specific firmware and hardware variants for specialized protection requirements.
Quality Assurance
- IEC 60255 Compliance: All protection functions tested according to international relay standards for accuracy and reliability.
- EMC Testing: Rigorous electromagnetic compatibility testing ensures immunity to interference and compliance with emission standards.
- Type Testing: Comprehensive type testing including temperature, vibration, and electrical stress tests to validate performance.
- Cybersecurity Validation: Regular security audits and penetration testing to ensure protection against digital threats.
- Field-Proven Reliability: Extensive field testing with utility partners worldwide ensures real-world performance validation.
Key Features
Advanced Digital Signal Processing
High-performance processors enable sophisticated protection algorithms with sampling rates up to 80 samples per cycle.
IEC 61850 Edition 2 Compliance
Full implementation of the latest IEC 61850 standard with support for GOOSE, SV, and MMS services.
Comprehensive Protection Functions
Over 50 protection functions including distance, differential, overcurrent, voltage, frequency, and transformer protection.
Enhanced Cybersecurity
Multi-layered security with role-based access control, encrypted communication, and secure firmware updates.
Advanced Fault Recording
High-resolution disturbance recording with up to 64 analog channels and comprehensive event logging.
Flexible Communication Options
Multiple communication interfaces including Ethernet, fiber optic, and serial ports with protocol flexibility.
Intuitive HMI
High-resolution graphic display with intuitive navigation and comprehensive local control capabilities.
Modular Hardware Architecture
Flexible configuration with plug-in modules for I/O expansion and communication options.
Time Synchronization
IEEE 1588 (PTP) and IRIG-B support for precise time synchronization across the protection system.
Advanced Testing Features
Built-in test routines and commissioning tools to simplify installation and maintenance procedures.
Power Quality Monitoring
Comprehensive power quality analysis including harmonics, flicker, and voltage sag detection.
Remote Management
Secure remote access for configuration, monitoring, and maintenance via DIGSI 5 software.
Why Choose Siprotec 5
Siprotec 5 is Siemens' fifth-generation protection and control platform, setting new standards for performance, security, and flexibility in power system protection.
Proven Legacy
Building on decades of protection expertise, Siprotec 5 combines proven algorithms with cutting-edge technology.
Cybersecurity Leader
Industry-leading security features protect critical infrastructure from evolving digital threats.
Global Standard
Deployed in utilities and industries worldwide with proven reliability in diverse applications.
Future-Ready
Designed to adapt to evolving grid requirements including renewable integration and smart grid applications.
Modular Flexibility
Hardware and software modularity allows for customized solutions tailored to specific requirements.
Expert Support
Backed by Siemens' global network of technical experts and certified partners for implementation and support.
Frequently Asked Questions
Siprotec 5 is Siemens' fifth-generation protection and control device platform. It offers enhanced processing power, improved cybersecurity features, full IEC 61850 Edition 2 compliance, and a more modular hardware design compared to previous generations. The platform also features an intuitive user interface and advanced communication capabilities for seamless integration into modern substation automation systems.
Yes, Siprotec 5 devices are designed for seamless integration with both legacy and modern protection systems. They support multiple communication protocols including IEC 60870-5-103 for compatibility with older systems, as well as IEC 61850 for modern digital substations. The modular hardware design also allows for phased migration strategies where Siprotec 5 devices can be introduced gradually without disrupting existing operations.
Siprotec 5 incorporates comprehensive cybersecurity features including role-based access control, encrypted communication (TLS/SSL), secure firmware updates with digital signatures, user authentication mechanisms, and compliance with IEC 62351 and IEEE 1686 standards. These features protect against unauthorized access, ensure data integrity, and prevent malicious attacks on critical power infrastructure.
Siprotec 5 offers a comprehensive range of devices for various applications including transmission line protection (distance protection), transformer protection, busbar protection, generator protection, motor protection, and distribution feeder protection. Specialized devices are also available for applications like railway electrification, renewable energy integration, and industrial systems, making it a versatile solution for the entire power system.
Siprotec 5 includes specialized protection functions and control features designed for renewable energy applications. These include protection for solar inverters, wind turbines, and battery storage systems, as well as grid code compliance functions like anti-islanding protection, voltage/frequency ride-through, and reactive power control. The platform's advanced communication capabilities also support the complex control requirements of modern renewable energy installations.
