At the forefront of power system innovation, we specialize in delivering cutting-edge protection and automation solutions centered around the Schneider Electric Easergy Series. As a trusted partner, we provide comprehensive services for these advanced digital relays, from expert consultation and system design to seamless integration, commissioning, and lifecycle support. Our certified professionals ensure that your critical infrastructure is equipped with the most reliable, intelligent, and secure protection technology available today.
The Easergy Series redefines protection with its emphasis on simplicity, connectivity, and safety. Whether you are safeguarding a utility substation, an industrial plant, or a commercial facility, our tailored solutions leverage the full capabilities of Easergy relays to enhance operational efficiency, ensure asset protection, and guarantee personnel safety. Trust us to empower your power systems with the unparalleled performance and future-ready design of the Easergy Series.
FUNCTIONALITY
The Easergy Series of protection relays functions as the intelligent brain of modern electrical networks. These microprocessor-based devices continuously monitor critical electrical parameters such as voltage, current, frequency, and phase angle. Utilizing advanced protection algorithms, they instantly detect abnormalities like overloads, short circuits, earth faults, and power swings. Upon identifying a fault, the relay executes a high-speed trip command to circuit breakers, isolating the faulty section in milliseconds to prevent equipment damage and widespread outages. Configured via the intuitive Easergy Studio software, they offer unparalleled flexibility and control over your protection strategy.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Range | Easergy P3, P5, P150, P153, T200 |
| Voltage Rating | Up to 69 kV (depending on model) |
| Current Rating | 1A to 5A (secondary), configurable for high-accuracy applications |
| Frequency | 50/60 Hz |
| Communication Protocols | IEC 61850 Edition 2, Modbus TCP/IP, DNP3, IEC 60870-5-103, IEC 61850 GOOSE |
| Configuration Software | Easergy Studio (Intuitive, user-friendly interface) |
| Cybersecurity Standard | IEC 62443-4-2 (Security Levels 1, 2, and 3 compliant) |
| Display Type | Large, high-resolution LCD graphic display with backlit keypad |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Key Protection Functions | Overcurrent, Earth Fault, Distance, Differential, Voltage, Frequency, Arc Flash, Breaker Failure |
Benefits
- Enhanced System Reliability: Fast and accurate fault detection minimizes outage duration and prevents cascading failures, ensuring a stable and resilient power supply.
- Superior Personnel Safety: Best-in-class arc flash protection significantly reduces the risk of injury to maintenance personnel, creating a safer working environment.
- Simplified Engineering & Operation: The intuitive Easergy Studio software and plug-and-play hardware drastically reduce engineering, commissioning, and training time.
- Future-Ready Connectivity: Full IEC 61850 compliance and multiple protocol options ensure seamless integration into modern substation automation and IoT ecosystems.
- Robust Cybersecurity: Built-in security features based on the IEC 62443 standard protect your critical assets from evolving cyber threats.
- Optimized Asset Management: Advanced monitoring and metering capabilities provide valuable data for predictive maintenance, extending equipment lifespan.
- Total Cost of Ownership Reduction: Combines reduced engineering costs, lower maintenance needs, and enhanced asset protection to deliver significant long-term savings.
Applications
- Utility Substations: Provides primary protection for transmission and distribution lines, transformers, and busbars in medium and high voltage substations.
- Industrial Facilities: Safeguards critical motors, generators, and distribution networks in manufacturing, mining, oil & gas, and process industries.
- Commercial Buildings: Ensures reliable power distribution and protects essential electrical infrastructure in hospitals, data centers, and large office complexes.
- Renewable Energy: Ideal for the protection and control of solar farms, wind farms, and battery energy storage systems (BESS).
- Transportation Infrastructure: Secures power supply for railways, airports, and metro systems, guaranteeing operational continuity.
- Water & Wastewater Treatment: Protects pumps and control systems essential for public utilities and industrial processes.
- Marine & Offshore: Designed to meet the rigorous demands of electrical systems on ships and offshore platforms.
Integration Excellence
- Expert Panel Design: Our engineers design custom control and relay panels that perfectly house and integrate Easergy Series relays with other switchgear components.
- Precision Wiring: All panels are assembled with meticulous attention to wiring standards, ensuring signal integrity and long-term reliability.
- Seamless Configuration: We utilize Easergy Studio to expertly configure all protection functions, logic, and communication settings to match your specific application requirements.
- Thorough Simulation: Before deployment, we conduct extensive offline simulations to verify the protection scheme's logic and response to various fault scenarios.
- Modular & Scalable Designs: Our panel solutions are built for flexibility, allowing for future expansion and system upgrades with minimal disruption.
Quality Assurance
- Factory Acceptance Testing (FAT): Comprehensive testing of the complete panel, including relay functionality, wiring checks, and communication validation, in our facility.
- Relay Settings Verification: A detailed review and confirmation of all protection settings against the approved design documents.
- Insulation & Continuity Checks: Rigorous testing of all wiring and circuits to ensure safety and performance according to IEC standards.
- Site Acceptance Testing (SAT):h On-site commissioning and testing to validate the system's performance within the actual electrical network.
- Documentation & Handover: Provision of complete, certified documentation including as-built drawings, test reports, and configuration files for seamless maintenance.
Key Features
Arc Flash Protection
Industry-leading arc flash detection and mitigation to protect personnel and equipment from catastrophic events.
Advanced Protection Algorithms
High-performance algorithms ensure fast, selective, and reliable fault detection for all types of electrical networks.
Easergy Studio Software
An intuitive, all-in-one software tool for simplified configuration, simulation, and commissioning of the entire protection system.
Built-in Cybersecurity
Intrinsic security features based on the IEC 62443 standard to defend against cyber-attacks and ensure system integrity.
IEC 61850 Native
Full native support for IEC 61850, enabling seamless interoperability and high-speed peer-to-peer communications.
Comprehensive Metering
High-accuracy metering for energy management, power quality analysis, and system performance monitoring.
Universal Connectivity
Multiple communication ports and protocol support ensure easy integration into any existing SCADA or HMI system.
Flexible I/O Options
Configurable digital and analog inputs/outputs allow for customized control and monitoring schemes.
Intuitive Local HMI
A large, backlit graphic display provides clear, real-time data and facilitates easy on-site navigation and control.
Global Compliance
Certified to meet major international standards, ensuring suitability for deployment in projects worldwide.
Why Choose Our Easergy Solutions
We are your dedicated partner in implementing world-class protection systems with the Schneider Electric Easergy Series.
Authorized Partner
As an authorized Schneider Electric partner, we guarantee genuine products and direct access to factory support and training.
Deep Technical Expertise
Our engineers are certified and possess in-depth knowledge of protection philosophy and the Easergy product ecosystem.
Complete Lifecycle Support
We offer end-to-end services, from initial design and configuration to commissioning, maintenance, and 24/7 technical support.
Custom-Tailored Solutions
We don't just sell products; we engineer complete, customized protection solutions designed to meet your specific operational needs.
Proven Track Record
Successfully deployed Easergy Series solutions in numerous utilities and industries, enhancing their safety and reliability.
Commitment to Excellence
Our unwavering focus on quality, safety, and customer satisfaction makes us the ideal partner for your critical protection needs.
Frequently Asked Questions

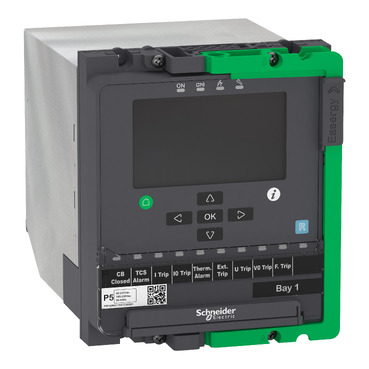

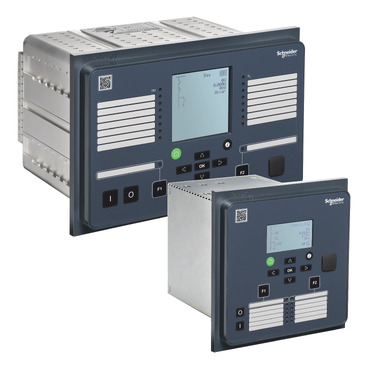

The Easergy Series is Schneider Electric's comprehensive range of next-generation protection relays. It includes models like the Easergy P3, P5, and T200, designed for the protection, control, and monitoring of medium and high voltage power systems, emphasizing simplicity, connectivity, and safety.
The Easergy Series features best-in-class arc flash protection. With ultra-fast light and current-based detection, it can trip a breaker in under 2.5 milliseconds, drastically reducing the incident energy of an arc flash and significantly lowering the risk of severe injury to personnel.
Yes, absolutely. It is designed for simplicity. The Easergy Studio software provides an intuitive, all-in-one platform for configuration, simulation, and commissioning. This reduces engineering time, minimizes errors, and simplifies the entire process from setup to operation.
Yes. Easergy relays are native IEC 61850 and support a wide range of other industrial protocols like Modbus TCP/IP, DNP3, and IEC 60870-5-103. This ensures seamless interoperability and easy integration into both new and existing substation and control systems.
We offer a complete lifecycle of services, including system studies and design, custom panel building, expert configuration with Easergy Studio, professional commissioning, on-site training, preventative maintenance, and 24/7 technical support to ensure your system operates at peak performance.
