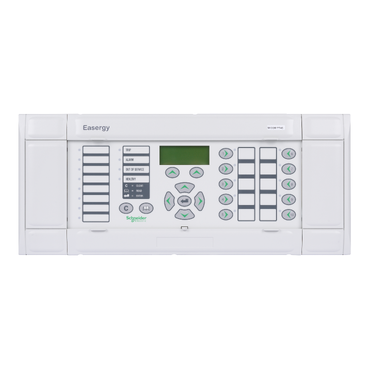

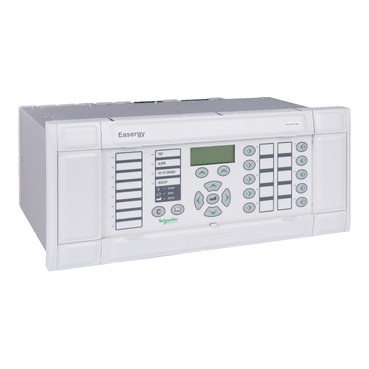

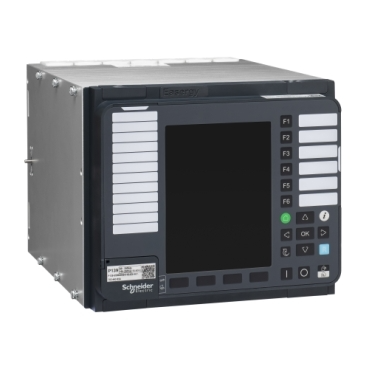

Mashel Electric specializes in advanced Distance Line Protection systems, providing critical fault detection and isolation solutions for high-voltage transmission networks. Our state-of-the-art protective relay schemes ensure rapid fault identification, minimizing system disturbances and preventing widespread power outages. With decades of expertise in power system protection, we deliver reliable solutions that safeguard transmission infrastructure across utilities and industrial facilities.
Our distance protection solutions utilize cutting-edge digital relay technology to accurately measure impedance and determine fault locations with precision. Engineered for both radial and meshed network configurations, our systems offer comprehensive zone protection, adaptive settings, and seamless integration with SCADA systems. Trust Mashel Electric to enhance your grid reliability with industry-leading distance protection technology that ensures continuous power delivery and equipment safety.
FUNCTIONALITY
Distance Line Protection systems operate on the fundamental principle of impedance measurement, calculating the apparent impedance from the relay location to any fault point on the transmission line. These intelligent protective relays continuously monitor voltage and current signals, using sophisticated algorithms to determine fault distance within milliseconds. The system divides the protected line into multiple zones (typically 3-4 zones), each with specific reach settings and time delays, ensuring selective coordination with adjacent protection devices. Upon detecting a fault within its designated zone, the relay initiates instantaneous or time-delayed tripping commands to circuit breakers, isolating the faulty section while maintaining power flow to healthy parts of the network.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Voltage | 33kV to 765kV AC systems |
| Frequency Range | 50Hz / 60Hz ± 5Hz |
| Protection Zones | Up to 5 zones with independent settings |
| Operating Time | 15-25ms for zone 1, 100-500ms for backup zones |
| Measuring Accuracy | ± 2% for impedance measurement |
| Communication Protocols | IEC 61850, IEC 60870-5-103, DNP3, Modbus |
| Relay Types | Numerical/digital distance relays with GUI |
| Fault Types Detected | Phase-phase, phase-ground, three-phase, evolving faults |
| CT/VT Requirements | Class 5P or better for CTs, Class 0.2 for VTs |
| Additional Features | Auto-reclosing, fault locator, power swing detection, synchrocheck |
Benefits
- Selective Fault Clearance: Ensures precise isolation of faulty sections, minimizing power disruption to healthy network areas and maintaining system stability.
- High-Speed Operation: Ultra-fast fault detection and tripping (within 1-2 cycles) prevents equipment damage and maintains grid stability during fault conditions.
- Enhanced System Reliability: Multi-zone protection with backup coordination ensures continuous protection even if primary protection fails.
- Accurate Fault Location: Advanced fault location algorithms pinpoint exact fault positions, reducing restoration time and maintenance costs.
- Adaptive Protection: Dynamic settings adjustment based on real-time system conditions, optimizing protection sensitivity and security.
- Comprehensive Fault Coverage: Detects all types of faults including high-impedance faults, evolving faults, and cross-country faults.
- Reduced Downtime: Fast fault isolation and accurate location data enable quick repairs and restoration, minimizing outage durations.
Applications
- EHV/UHV Transmission Lines: Critical protection for extra-high voltage (400kV+) and ultra-high voltage (765kV+) transmission corridors.
- Substation Interconnectors: Protecting tie-lines between substations and grid interconnection points.
- Renewable Energy Integration: Safeguarding transmission lines connecting wind farms, solar parks, and hydroelectric plants to the grid.
- Industrial Power Systems: Protection for high-capacity industrial facilities and manufacturing plants with private transmission networks.
- Ring Main Networks: Selective protection in meshed and ring distribution systems common in urban areas.
- Cable Systems: Specialized protection for underground and submarine cable transmission routes.
- Series Compensated Lines: Advanced protection schemes for lines with series capacitors for power flow control.
- Multi-Terminal Lines: Protection for complex transmission configurations with multiple tapping points.
Manufacturing Excellence
- ISO 9001 Certified Production: Strict quality management systems ensure consistent manufacturing excellence.
- Advanced Testing Facilities: In-house high-voltage laboratories for comprehensive type testing and routine testing.
- Precision Engineering: CNC-machined components and automated assembly for exacting tolerances.
- EMC/EMI Compliance: Electromagnetic compatibility testing to ensure reliable operation in harsh electrical environments.
- Custom Panel Fabrication: Tailor-made control panels with optimized layouts for specific substation requirements.
Quality Assurance
- IEC/IEEE Standard Compliance: All products tested according to IEC 60255, IEEE C37.112, and relevant international standards.
- Third-Party Certification: Independent testing and certification from accredited laboratories like CPRI, ERDA.
- Field-Proven Solutions: Extensive track record with successful installations in diverse utility environments.
- Software Validation: Rigorous testing of protection algorithms through digital simulation and real-time testing.
- Long-Term Reliability: Accelerated life testing to ensure 20+ years of dependable operation.
Key Features
Multi-Zone Protection
Configurable protection zones (typically 3-5) with independent reach and time settings for selective coordination.
Advanced Fault Detection
Sophisticated algorithms for detecting all fault types including high-impedance, cross-country, and evolving faults.
Precise Fault Location
Accurate fault distance calculation with less than 2% error, enabling rapid maintenance response.
Auto-Reclosing Function
Intelligent auto-reclose sequences with dead time monitoring for transient fault clearance.
Power Swing Detection
Advanced power swing blocking and out-of-step protection to prevent maloperation during system disturbances.
IEC 61850 Integration
Native support for IEC 61850 communication standard for seamless substation automation integration.
Comprehensive Security
Built-in cybersecurity features with user authentication, access control, and encrypted communications.
Thermal Monitoring
Integrated thermal overload protection with dynamic rating based on real-time conditions.
Event Recording
High-resolution fault recording with up to 64 samples per cycle for detailed post-fault analysis.
Adaptive Settings
Dynamic adjustment of protection settings based on system topology and operating conditions.
Synchrocheck Function
Automatic synchronization verification before reclosing to ensure system stability.
Intuitive HMI
User-friendly graphical interface with real-time monitoring, settings configuration, and diagnostic tools.
Why Choose Mashel Electric
Mashel Electric is your trusted partner for advanced distance protection solutions, combining cutting-edge technology with decades of power system expertise.
Engineering Excellence
Our protection engineers design customized distance protection schemes optimized for your specific network configuration.
Premium Quality
We use only IEC/IEEE certified components from leading manufacturers, ensuring unmatched reliability and performance.
24/7 Technical Support
Round-the-clock assistance from our protection specialists for commissioning, troubleshooting, and maintenance.
Expert Training
Comprehensive training programs for your engineers on operation, maintenance, and advanced fault analysis.
Global Standards
Our solutions comply with international standards (IEC, IEEE, ANSI) ensuring compatibility worldwide.
Proven Track Record
Successfully commissioned distance protection schemes for major utilities and industrial clients across the country.
Frequently Asked Questions
Distance protection measures impedance to determine fault location, providing selective protection for transmission lines, while overcurrent protection responds only to current magnitude. Distance protection offers faster fault clearing and better selectivity in high-voltage networks.
Most distance protection schemes use 3 to 4 zones. Zone 1 typically covers 80-90% of the line length with instantaneous tripping. Zone 2 covers the entire line plus 20-50% of the next line with time delay. Zone 3 provides backup protection for adjacent lines.
Yes, modern distance relays include specialized algorithms for series compensated lines. They account for the voltage drop across series capacitors and use adaptive techniques to maintain accurate fault location and protection selectivity.
Power swing detection prevents distance relay maloperation during stable power swings or system oscillations. It blocks tripping during power swings while maintaining protection for actual faults, ensuring system stability during disturbances.
Modern digital distance relays provide highly accurate fault location, typically within ±1-2% of the total line length. This precision helps maintenance crews quickly locate and repair faults, significantly reducing outage restoration times.
